3.3GHz 3.5W 24CH Ultra-Light FPV Analog Video Transmitter 24.5g for Drone Racing

3.3GHz 3.5W 24CH Ultra-Light FPV Analog Video Transmitter 24.5g for Drone Racing

Product Introduction:
This 3.3GHz FPV analog video transmitter is engineered for high-performance drone racing and long-range flights. With a powerful 3.5W output, wide voltage support (7-36V DC), and 24-channel intelligent frequency selection, it delivers a stable, interference-resistant video feed. The compact 24.5g ultra-lightweight design and standard 20x20mm mounting make it ideal for racing drones where speed, efficiency, and stability matter most.

Features:

• High Power Output: 3.5W maximum RF power with adjustable levels (Pit, 25mW, 2000mW, 3500mW) for flexible flight requirements.

• Wide Voltage Support: Operates on 7-36V DC (2-8S LiPo), no additional power module required.

• 24-Channel Frequency Range: Covers 3170MHz–3480MHz with easy band/point switching.

• Lightweight & Compact: Weighs only 24.5g (excluding antenna) with 20x20mm mounting hole spacing.

• VTX Control Protocol: Supports IRC Tramp control for remote configuration.

Advantages:

• Delivers long-range, low-latency, and interference-resistant video for competitive FPV racing.

• Compact and lightweight, reducing drone payload and improving agility.

• Flexible power adjustment for compliance with local regulations and varying flight scenarios.

• PAL/NTSC video format compatibility for universal use.

Applications:

• FPV racing drones requiring ultra-low latency and strong signal penetration.

• Long-distance aerial photography drones needing stable analog video transmission.

• Fixed-wing aircraft and custom UAV builds.

Specifications Table:

3.3GHz FPV video transmitter

ultra-lightweight drone racing VTX

24-channel analog transmitter with warranty

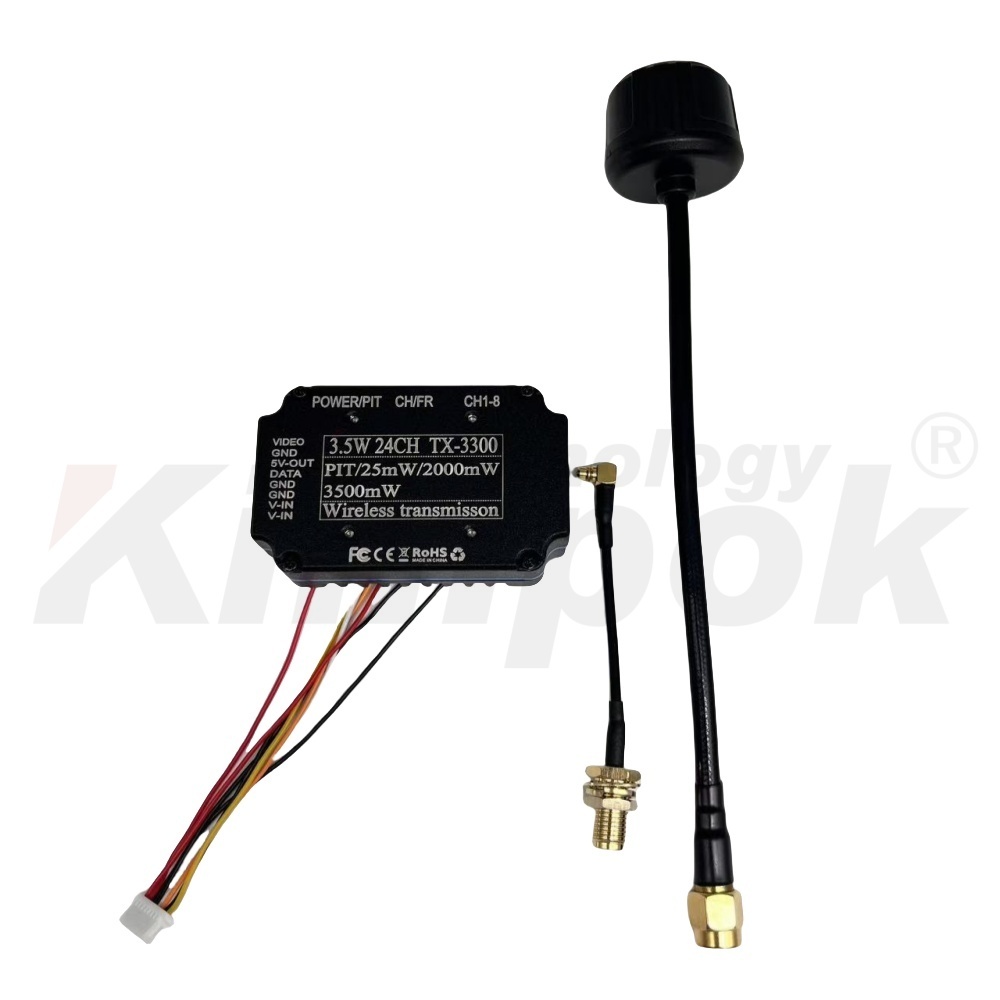

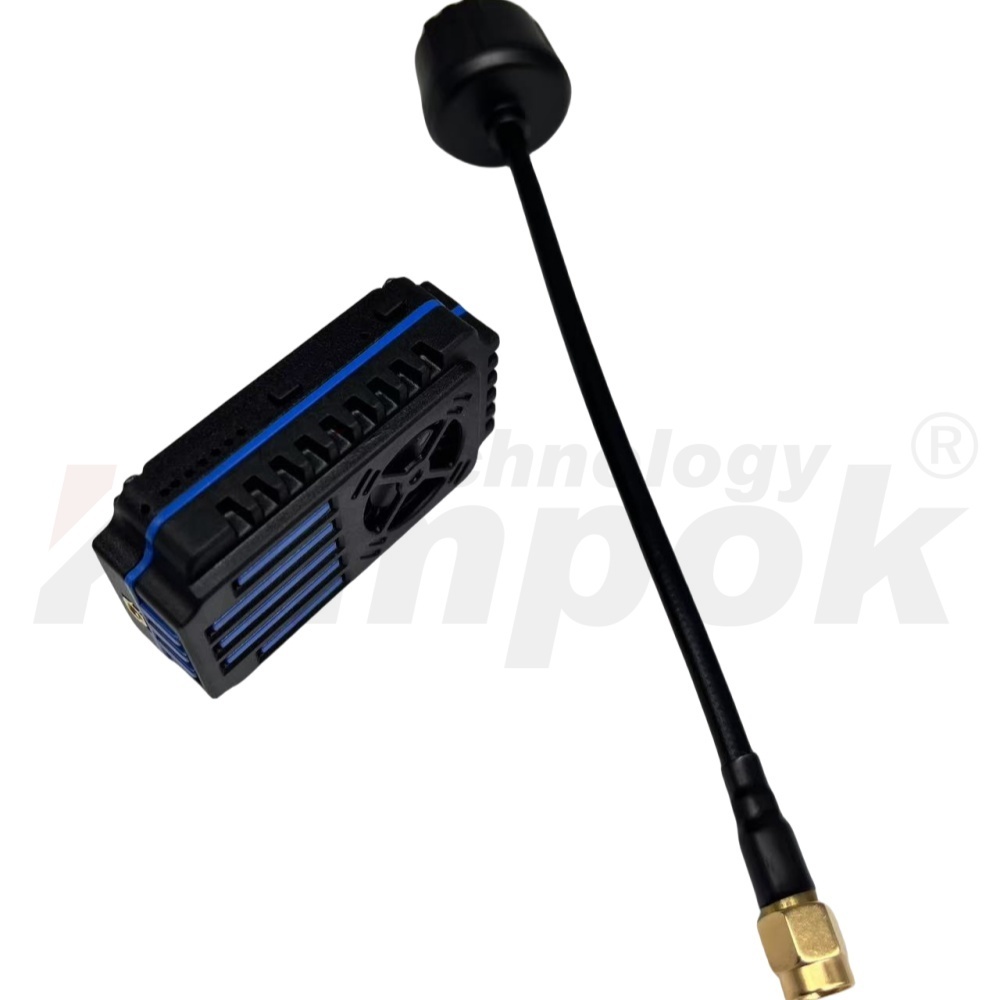

3.3GHz 3.5W 24CH Ultra-Light FPV Analog Video Transmitter 24.5g for Drone Racing Images
